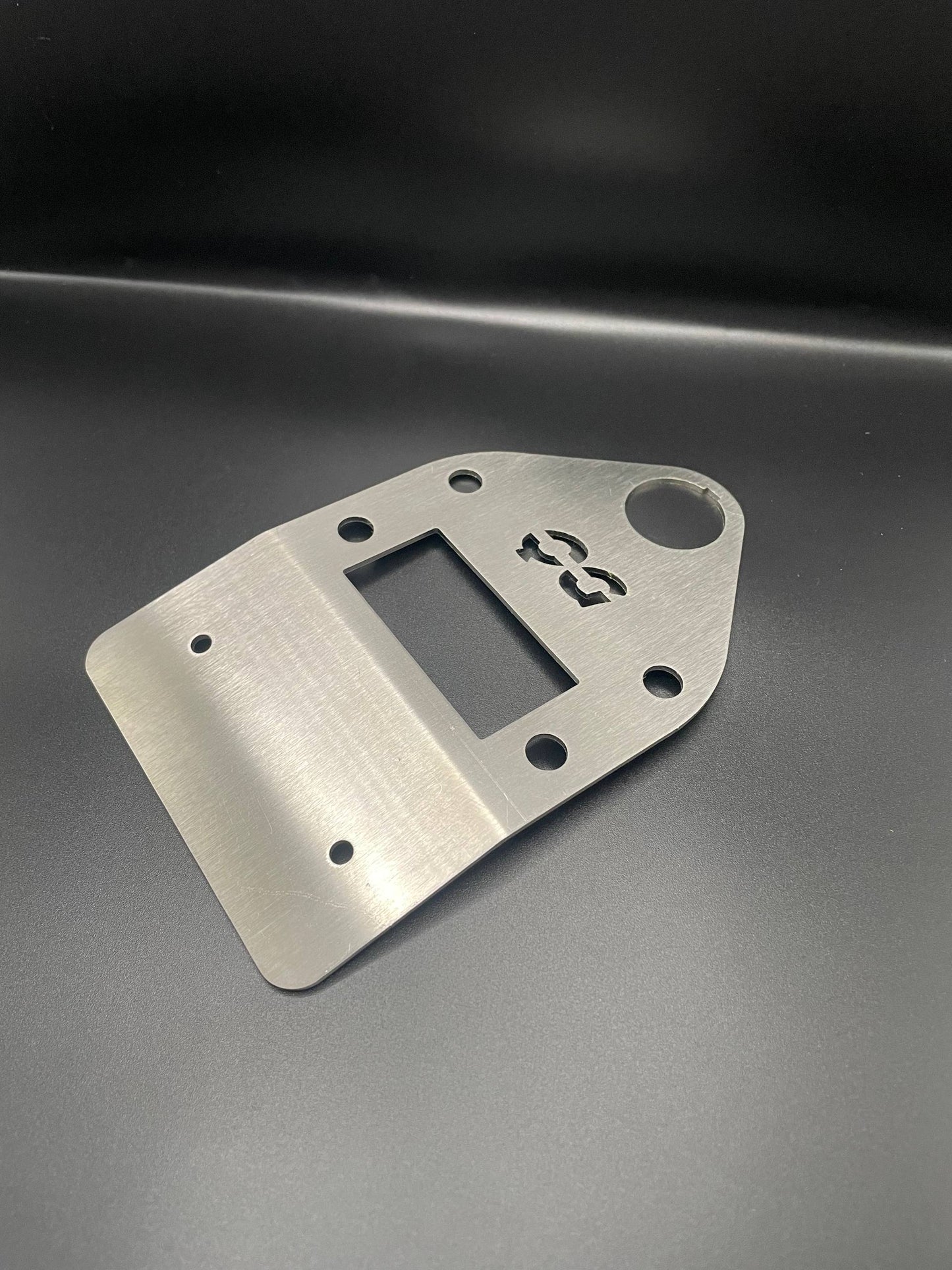

Steel 3-in-1 Mount

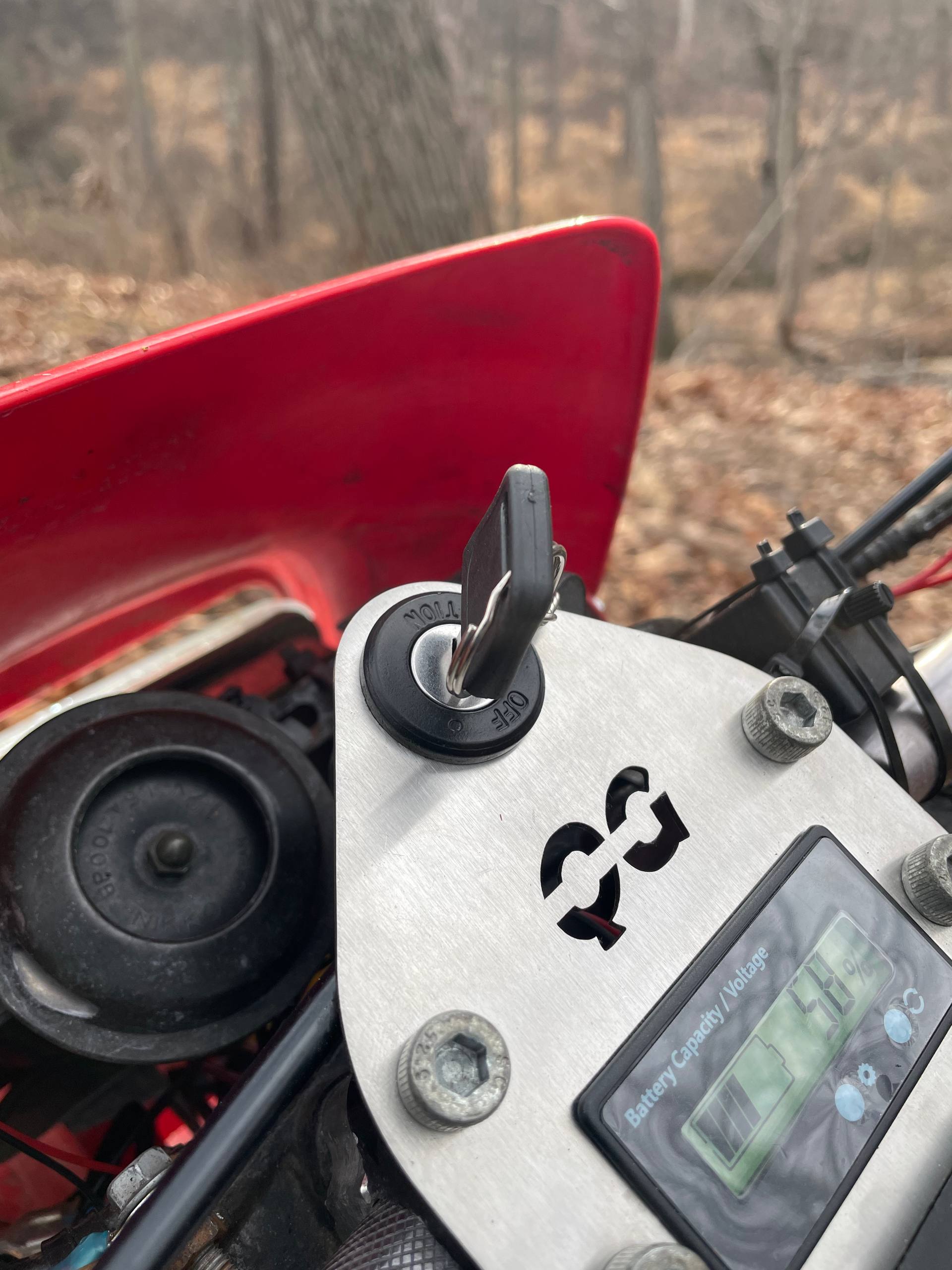

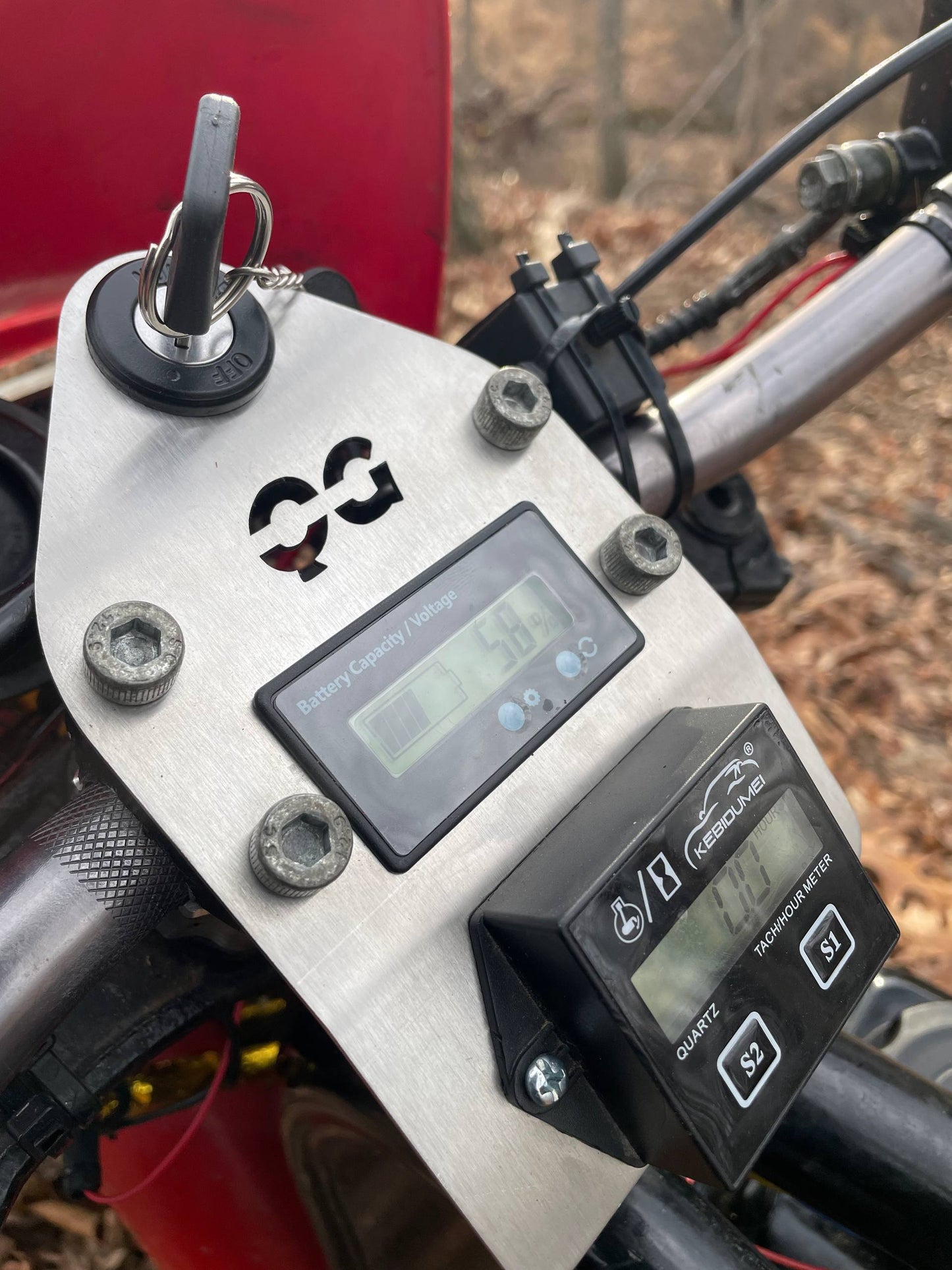

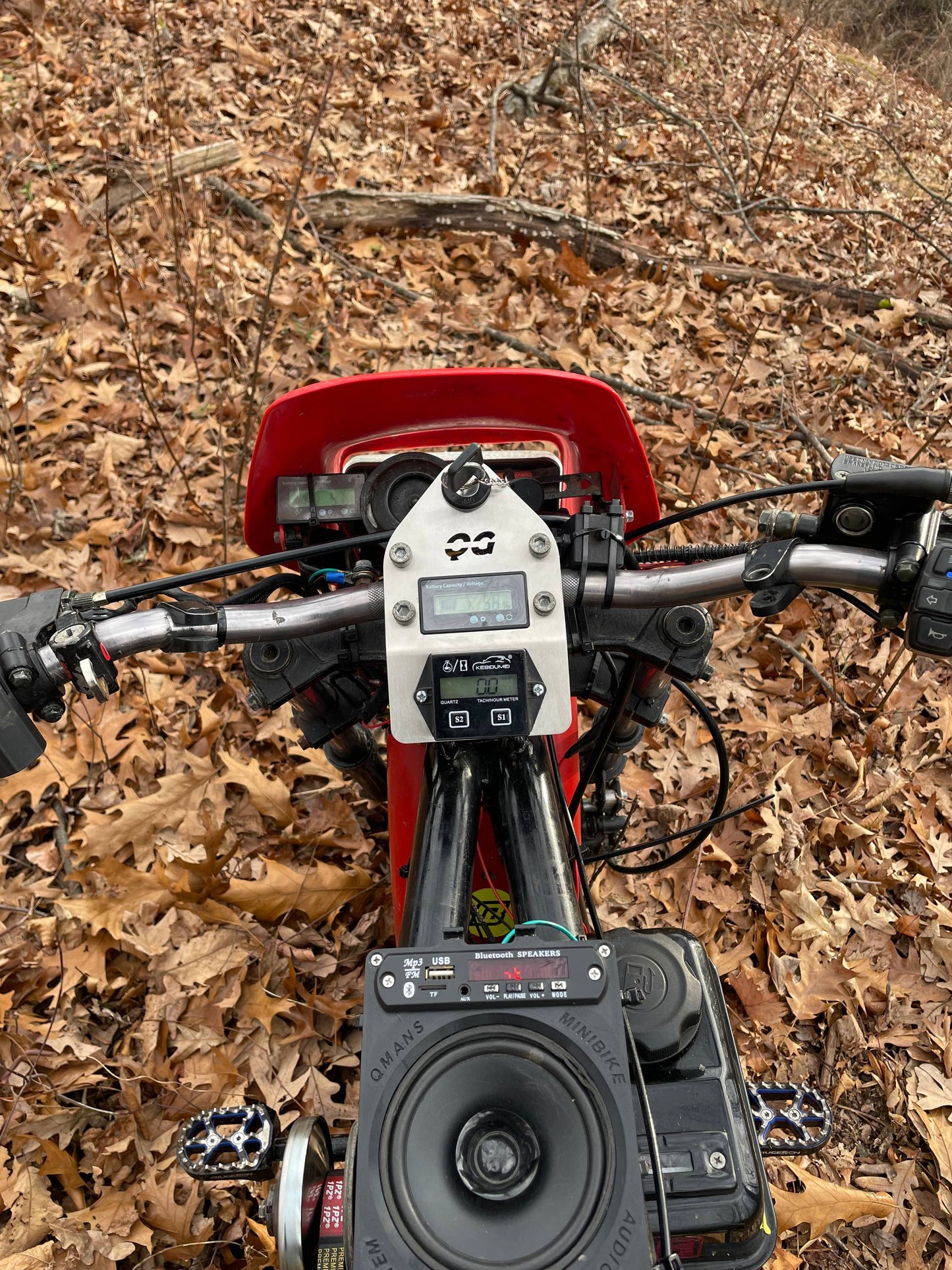

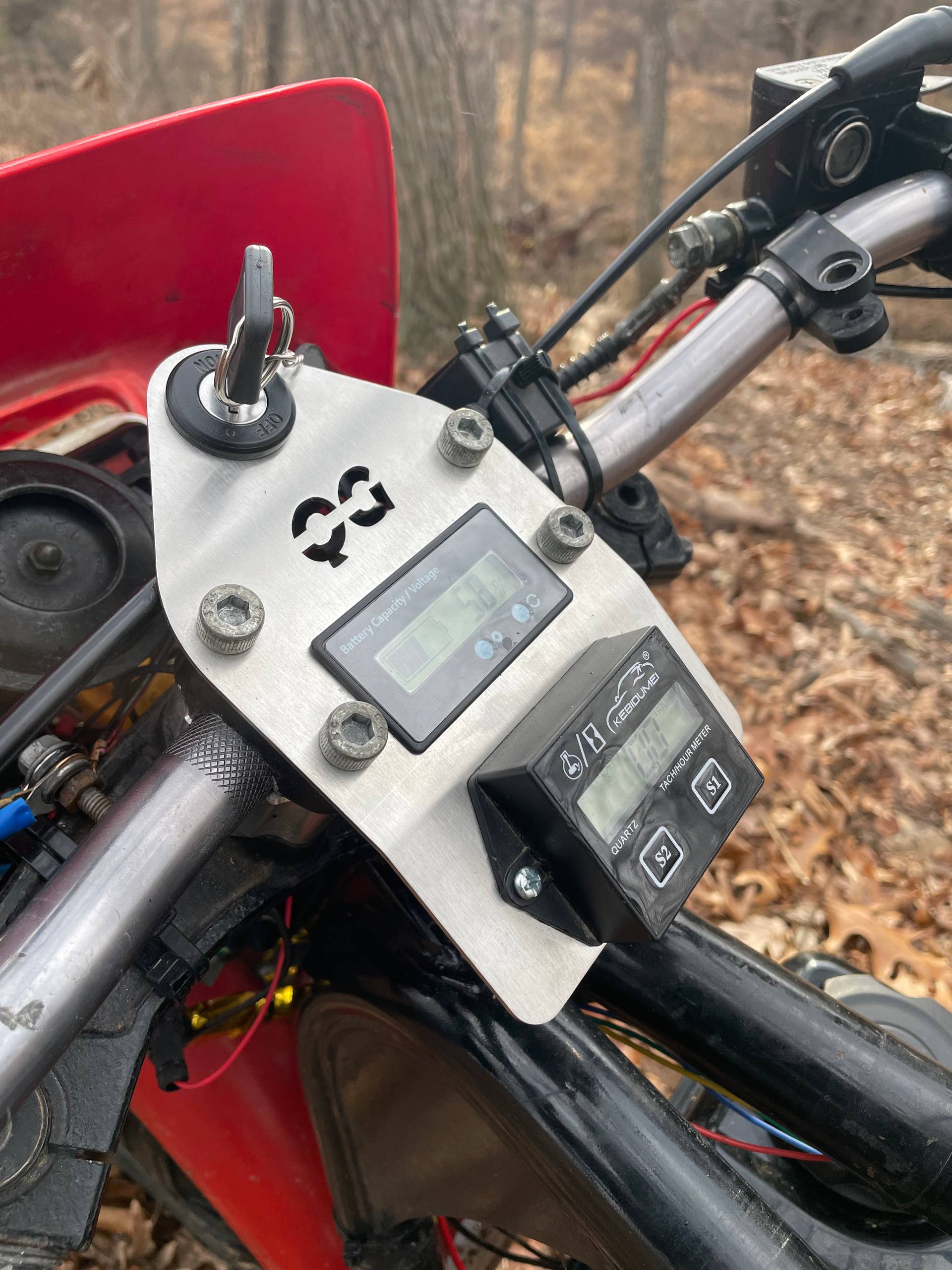

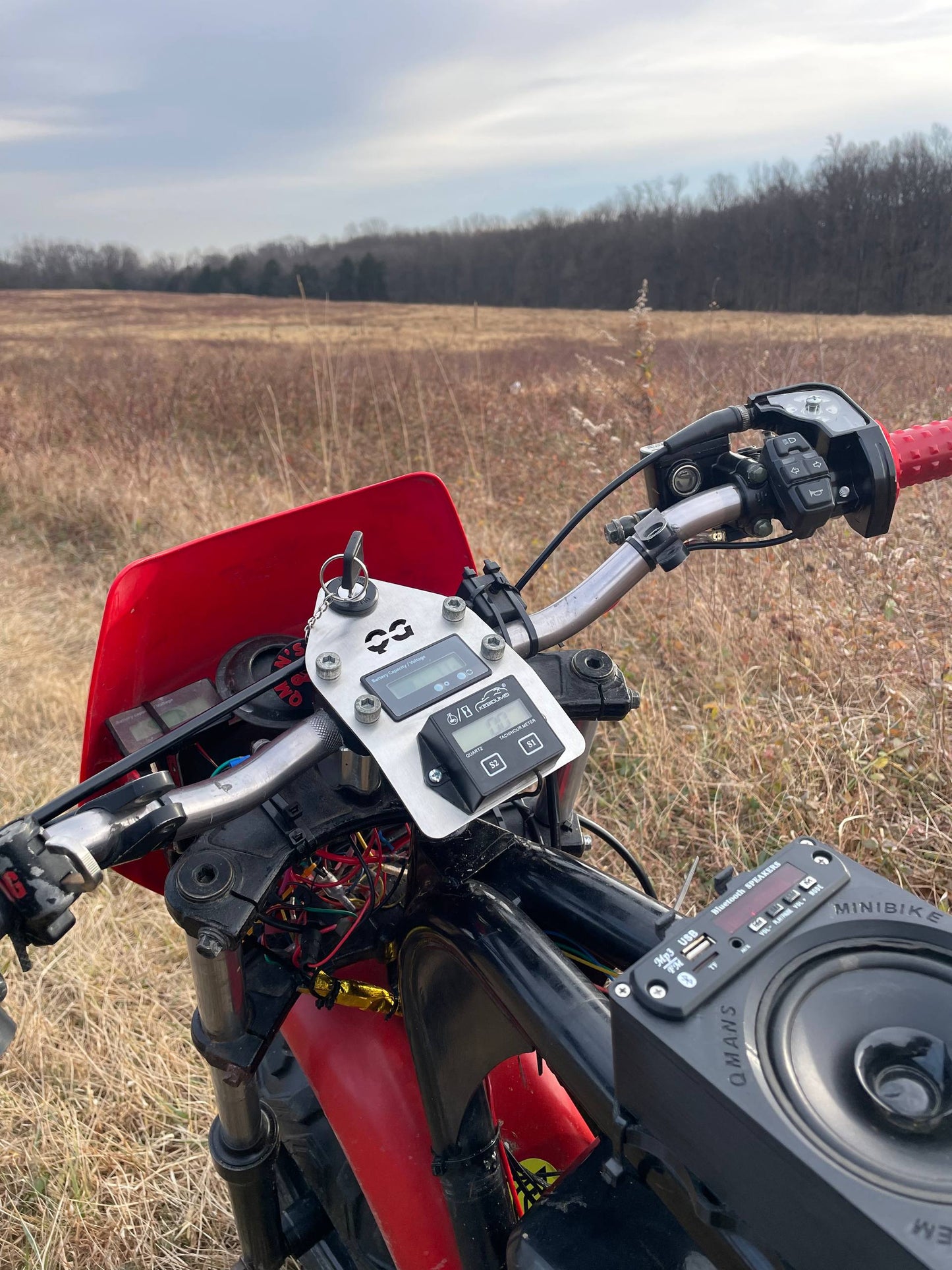

This 3-in-1 handlebar clamp mount allows you to run a QG killswitch lock, a battery voltage meter, and a tachometer all in one clean, centralized setup.

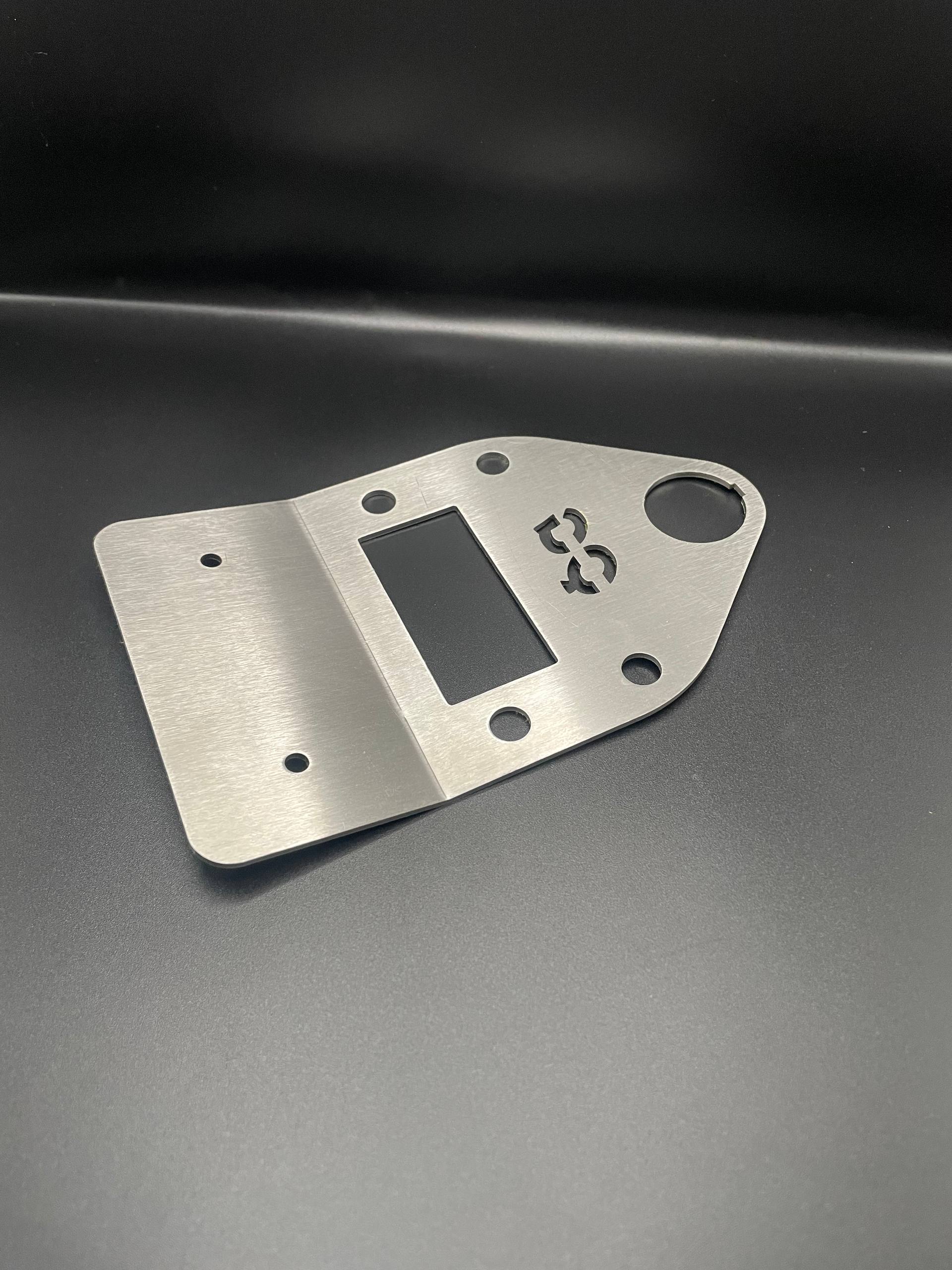

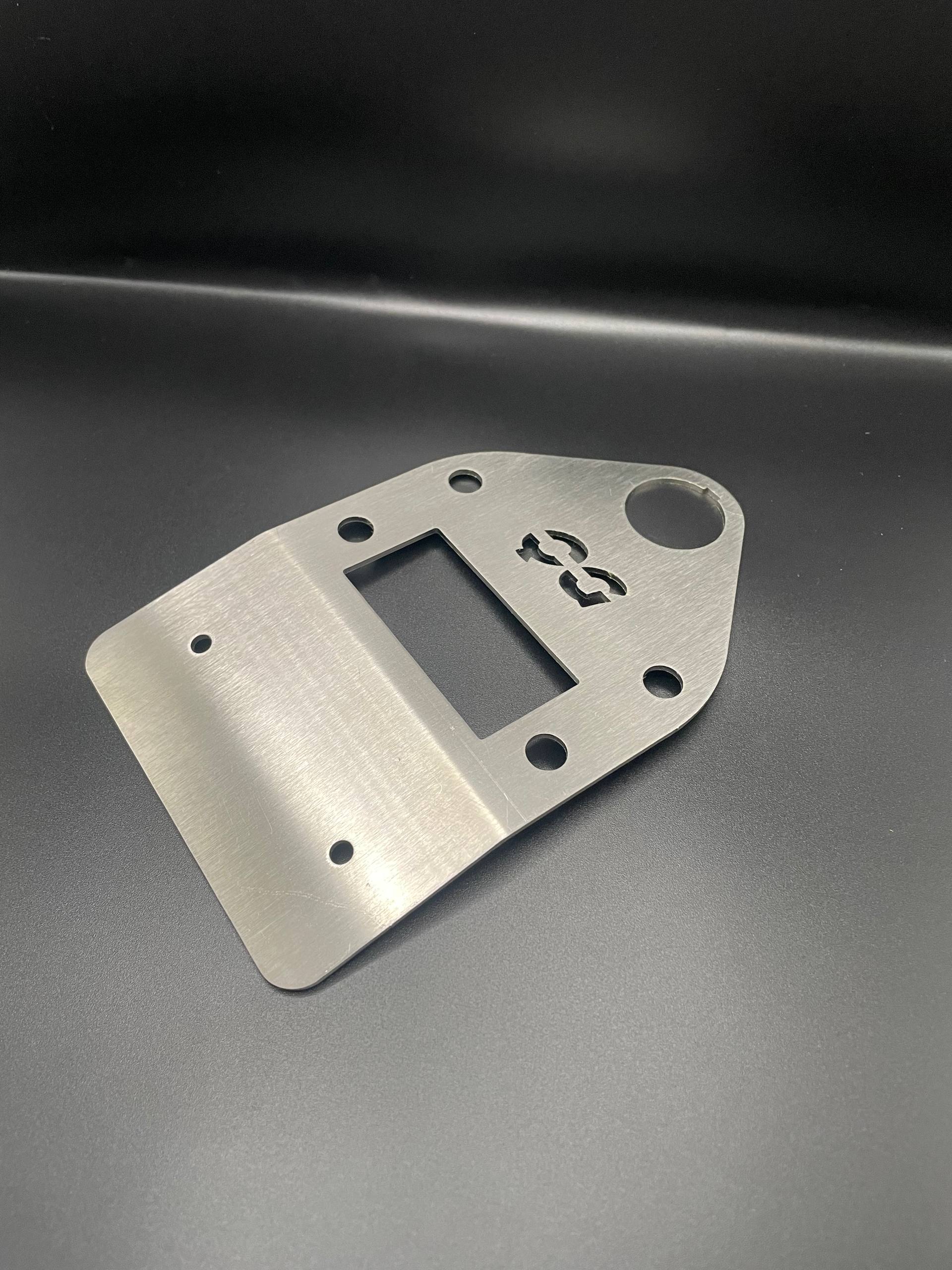

Heavy-duty construction: laser-cut and formed from 2mm thick 304 stainless steel for strength, rigidity, and corrosion resistance.

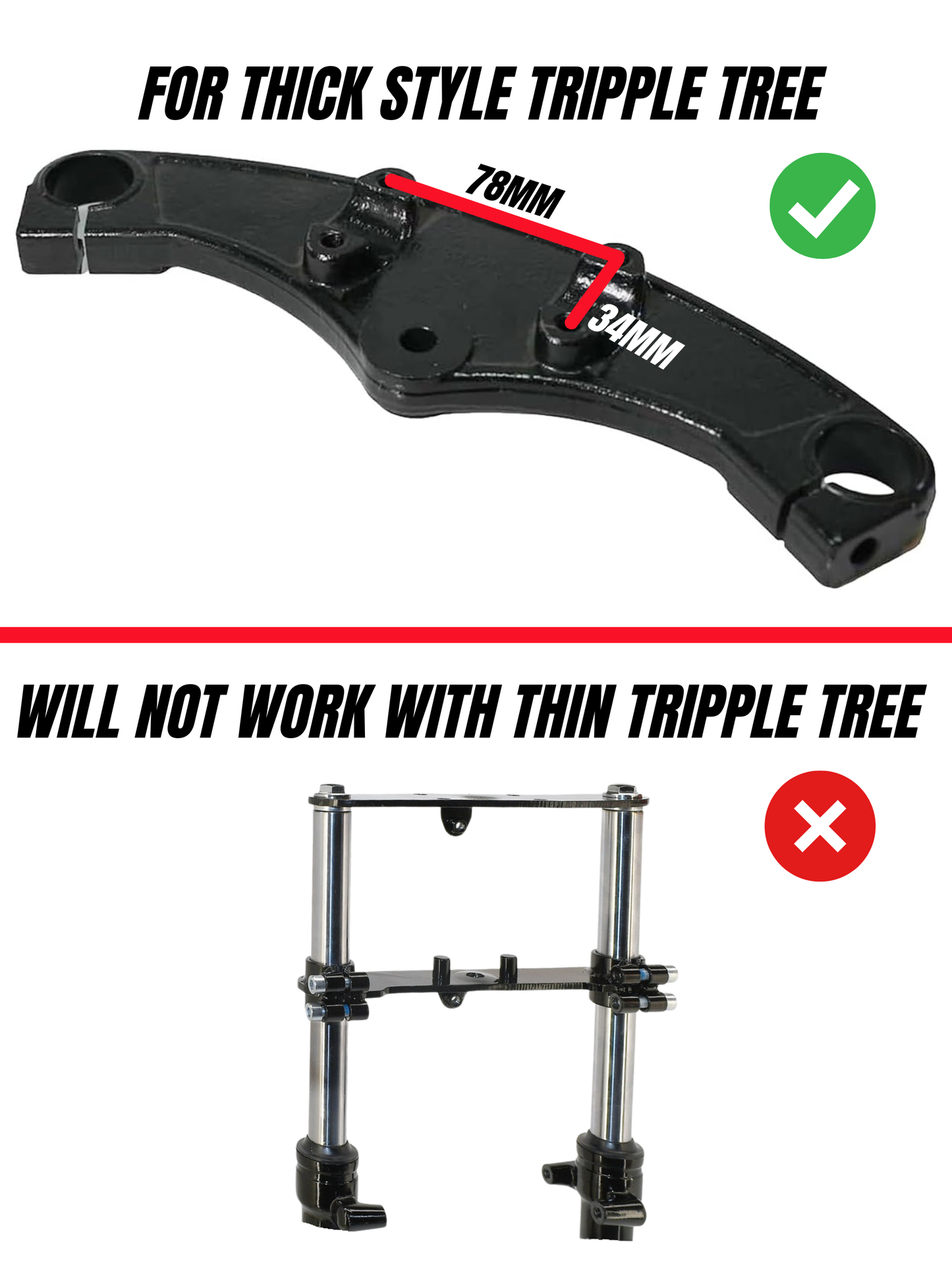

Under-clamp design: installs beneath the four handlebar clamp bolts using 78 × 34 mm bolt spacing found on most minibikes.

Integrated voltage meter mount: center cutout securely accepts a snap-in battery voltage meter with a 58 mm wide × 28.3 mm tall opening.

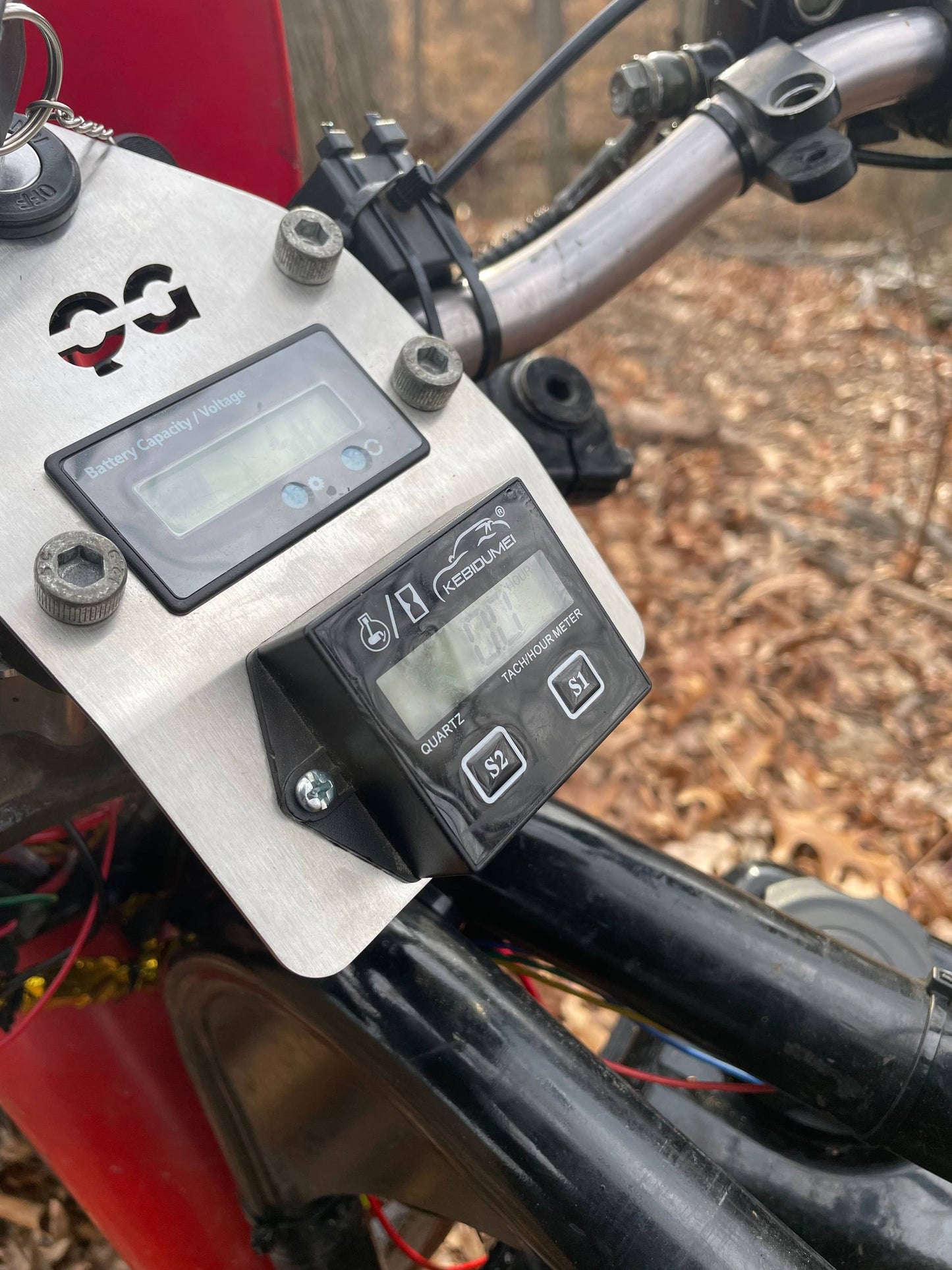

Angled tachometer mount: includes a 15° angled section for easy viewing, with two pre-drilled 5 mm holes spaced 63 mm apart for direct tachometer mounting.

Reversible design: mount can be flipped to angle the tachometer up or down based on rider preference (QG branding will appear reversed when flipped).

Spacers included: four 1.5 mm thick stainless steel washers install under the mount to raise it slightly, ensuring the voltage meter clears the handlebar beneath it.

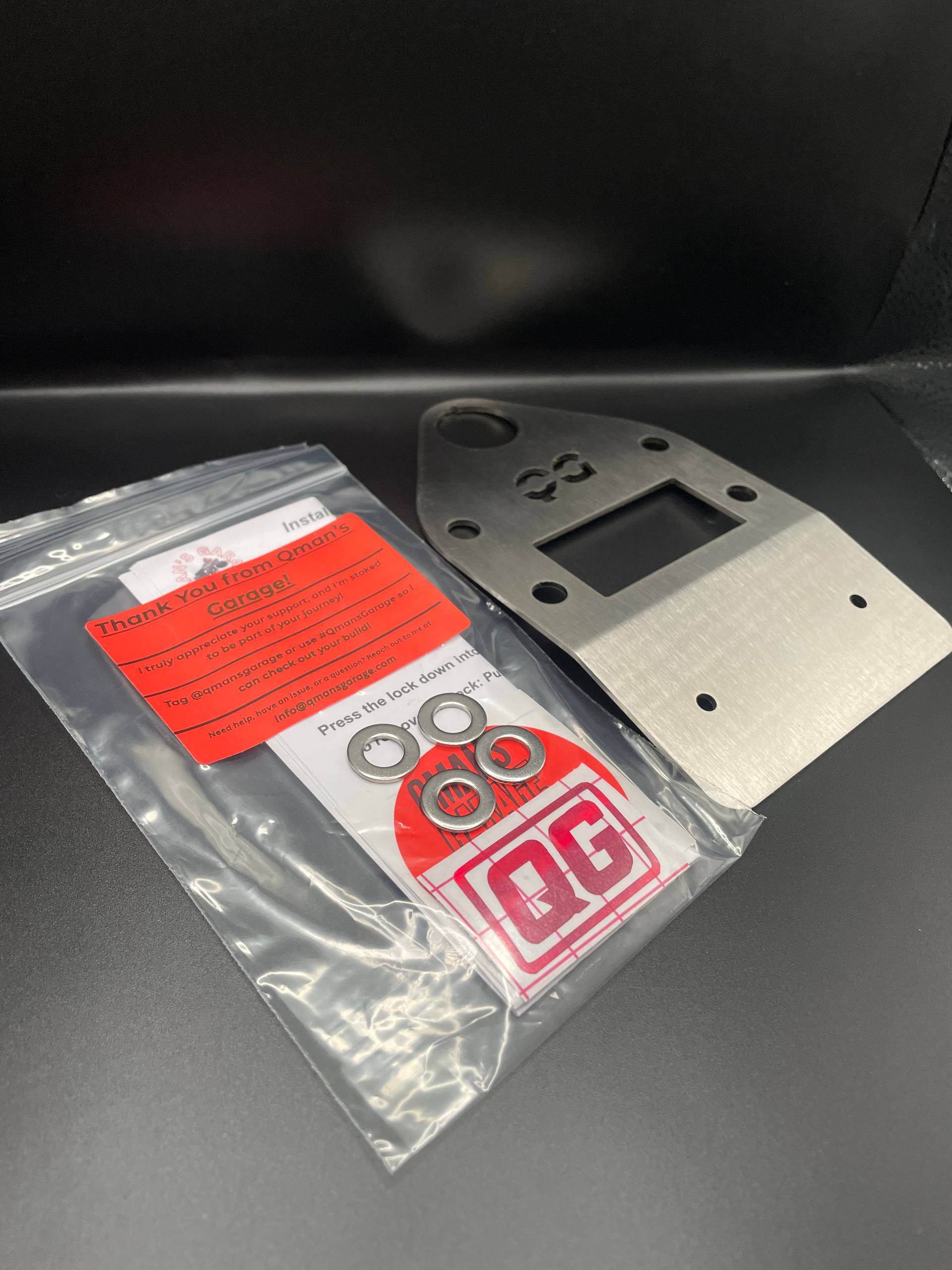

What’s Included:

3-in-1 handlebar clamp mount (2mm 304 stainless steel)

4× 1.5 mm stainless steel washers

1× QG vinyl decal

1× QG sticker

NOTE: LOCK, METER, & TACH ARE NOT INCLUDED. FULL KIT AVAILABLE SOON!
